Liebert RCM4 Contact Closure Alarm Panel

Liebert RCM4 Contact Closure Alarm Panel | LeftSideView
Liebert RCM4 Contact Closure Alarm Panel | ProductInUse2

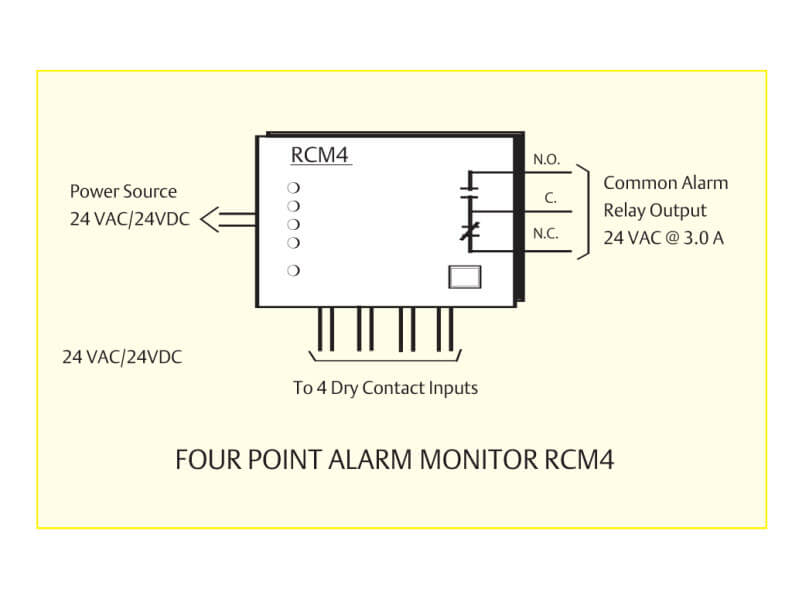

This panel displays customized alarm indication for any dry contact input from environmental, power and UPS systems, including Liebert units. This remote system continuously surveys your most critical support equipment and instantly alerts you to alarm conditions. The unit monitors up to four digital inputs.

Features

  • Customized alarm messages
  • Automatic system reset when incoming alarms are correlated
  • Four-point contact closure monitor
  • Four point monitor for any combination of environmental, power, and UPS systems, or other dry contact inputs
  • Powered by 24 Volts AC or DC, 6 VA amp — optional 120 VAC to 24 VAC transformer

Benefits

  • Quick identification of alarm conditions
  • Easily installed, with removable screw terminal connectors to simplify set-up of monitored points.
